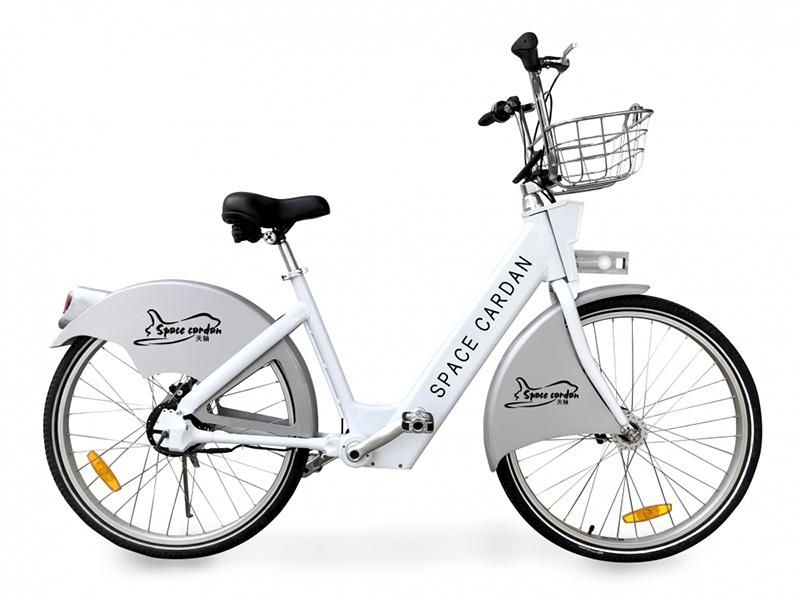

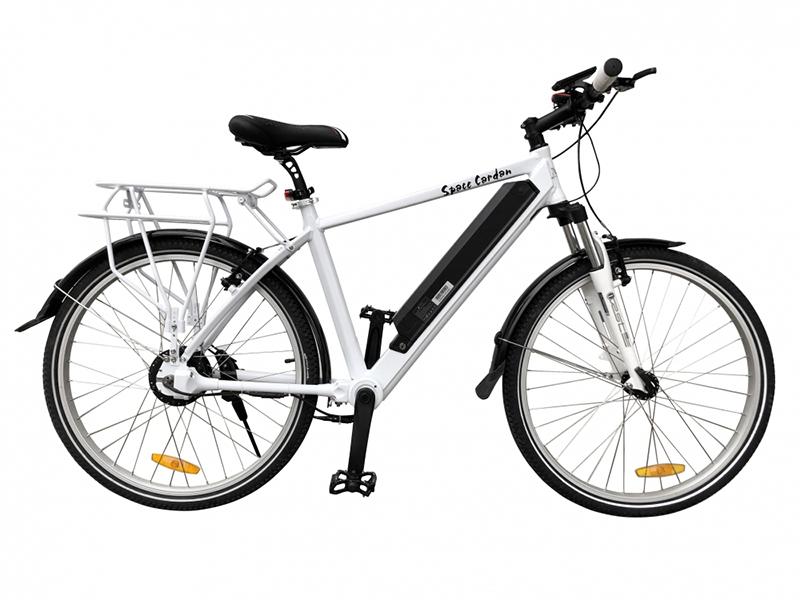

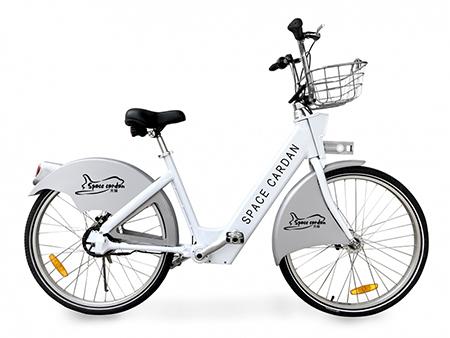

Electric Bicycle

Our electric bicycle features two operating modes: pedal-assist mode and electric mode, which each provide an enjoyable riding experience. Besides common electric bicycles, we also offer racing-type electric bicycles, which features a sleek appearance.

In pedal-assist mode, a speed sensor is equipped to start the motor when riding speed reaches a set threshold. The motor is set at the back wheel of the bicycle and is powered by a battery. When the riding speed surpasses the maximum threshold, the motor will shut down to ensure rider safety.

In electric mode, the electric bicycle is entirely powered by motor with no need for manual cycling. There are 3 adjustable gears. First gear has a maximum speed of 10km/h, the second gear is 15km/h, and third gear is 25km/h. The maximum range per battery charge is 129km in electric mode.

As a bike manufacturer, we offer electric bicycle customization services, including accessories made according to your needs.

Main parameters

Voltage: 36V
Current: 12.8A
The number of battery cells: 40
Max. speed: 25km/h
Max. range: 120km

Types:

No.	Item	Description	Unit	QTY	Remark
1	Frame	TZC-26"370 shift driver type	Set	1	Aluminum alloy
2	Front Fork	TZC-26"370 FORK	PCS	1	Steel
3	Saddle	FU-3680 78MM extend locking screw round reflector	PCS	1	Black, leather
4	Handle Bar	SUS304#,with basket W:640mm,H:85mm￠22.2x630x￠22.2	PCS	1	SUS304 Electrolysis natural color
5	Stem	Aluminum X-U TYPE TAG , Diameter of tube:25.4MM	Set	1	Shinny silver
6	Rim	DP-24AAS 241.75' 14H36 hole	PCS	2	6061-T6 silver
7	Battery	12.8ah	PCS	1	Panasonic
8	Control	BAFANG	PCS	1	BAFANG

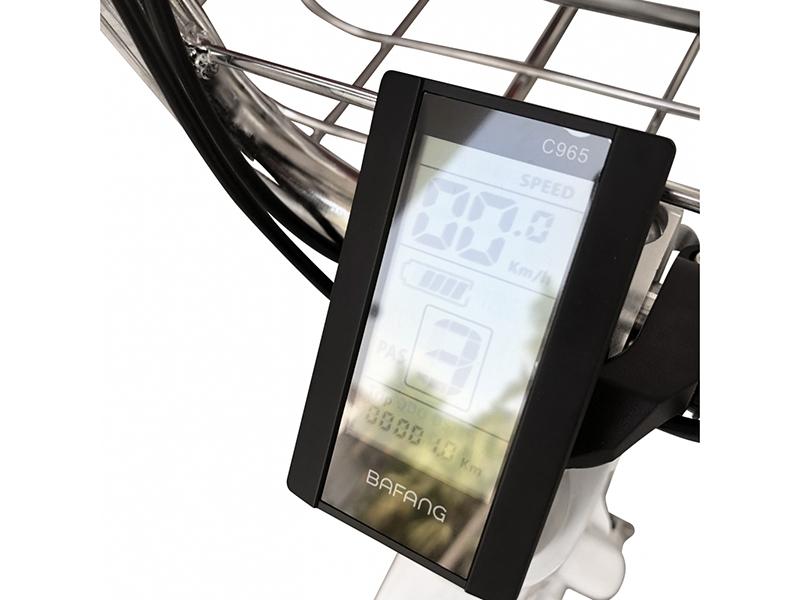

9	Monitor	BAFANG	PCS	1	BAFANG
10	Front Hub	DH-3R30-N 6V3W	PCS	1	Shimano

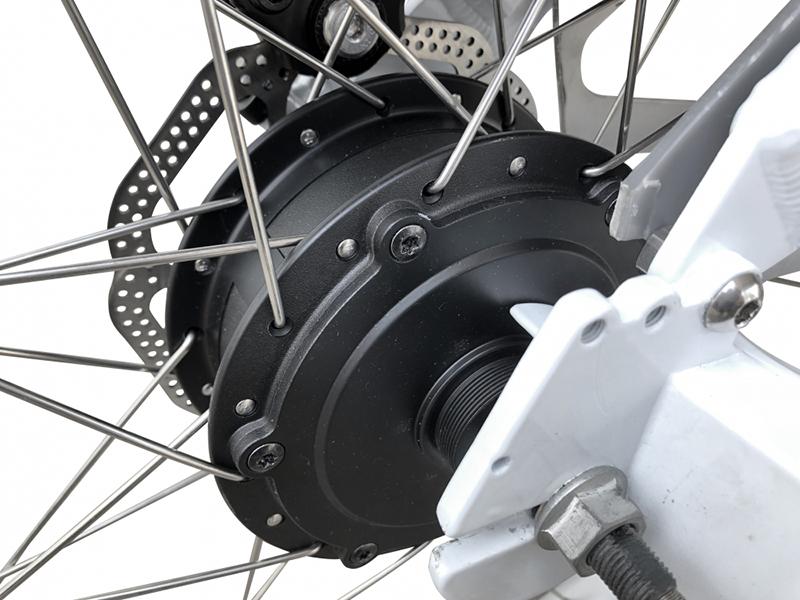

11	Rear Hub	RMG01.250D,36V,250W	Set	1	BAFANG
12	Tire	1.Kenda K935-002 26*1.75',air tire	Set	2	KENDA
13	Spoke	SUS304#13Gx36H F:215MM R:220MM F/R each with 36 PCS	PCS	36	SUS304
14	Crankset	YCY-CA6 170MM	Set	1	Aluminum
15	Fender	TZC-ZH-ZHCYUO1-q/h,F/R each with 1 pcs	PCS	1	PP
16	Pedal	Aluminum,CS-909, 9/16"心,1#,with CPSC reflector	PCS	1	Aluminum alloy
17	Kick Stand	TZC-Z032	PCS	1	SUS304 Electrolysis natural color
18	Rear Lola Brake	Shimano BR-IM41-R	Set	1	Shimano
19	Front Lola Brake	Shimano BR-IM41-F	Set	1	Shimano
20	Brake Lever	VBL-428AL/R	Set	1	Aluminum, Natural color
21	Front Light	Rexeo	Set	1	Spanninga
22	Rear Light	RL15	Set	1	Spanninga
23	Shift Drive	RC415S7TGR40T7F1H1A1 ratio of gear2.40	Set	1	Aluminum,+Steel space cardan invention patent product since 1996 which be used over 500000pics all the world
24	Headset	Eight pieces H842SW￠25.4x￠34x￠30	Set	1	NECO
25	Front light protector	tzc-1123	Set	1	Aluminum

Space Cardan Industries Co. is a highly experienced bike and bike accessories manufacturer with a focus on new technologies. We specialize in the production of chainless bikes, complete bike-sharing systems, and high-end bike accessories like chainless transmissions and electric motors. We combine new technologies with the classic design of bicycles to produce bikes and bike systems to make the world more accessible.
